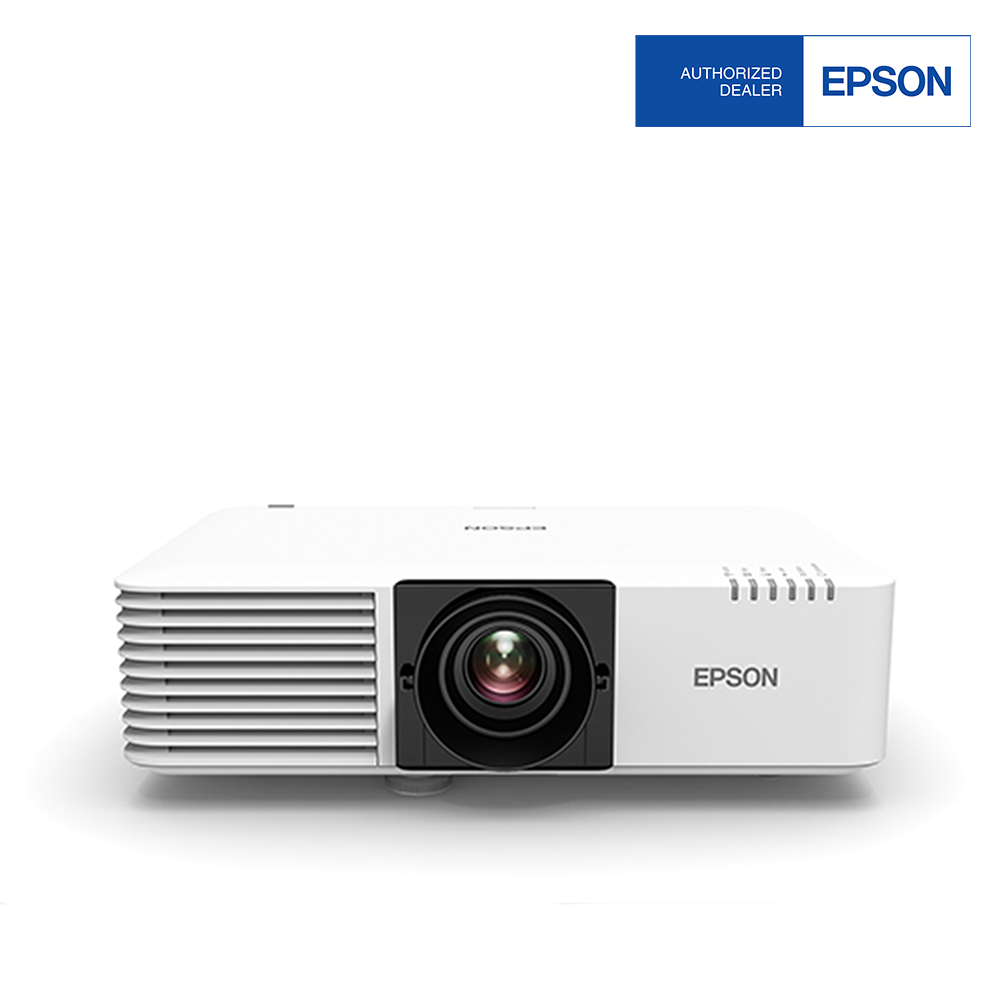

Epson EB-L630SU WUXGA 3LCD Short Throw Laser Projector

A Compact WUXGA Short Throw Laser Projector with 6,000 Lumens for Projecting Sharp and Vivid Images at a Shorter Distance

The EB-L630SU laser projector delivers powerful performance for education, business & signage applications.  Project amazingly bright, vivid images with 6000 lumens of white & colour brightness*2. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours and offers virtually maintenance-free operation with no lamps. Designed with short throw capability, space constraint is no longer a concern for customers. It also supports wide lens shift for greater flexibility. It is compatible with the Epson Wireless Presentation System** which enables hassle-free connectivity for better productivity.




Short Throw Model

Increased installation flexibility for customers who have space constraints as well as ideal for signage use to achieve large image at a short distance.


Seamless Multiple Projection

Blend multiple projections seamlessly and easily into one large screen for maximum reach through Daisy-chaining using the HDMI-out port. Correct any screen distortion quickly with the built-in rich geometric correction and edge blending function.


Wide Lens Shift

Wide lens shift of V : ±50%, H : ±20% for a great deal of flexibility when installing projectors and avoid image quality deterioration by using keystone correction.


Compatible with the Epson Wireless Presentation System

Improve productivity and deliver interactive meeting styles at an affordable price.


Projection Technology: RGB liquid crystal shutter projection system (3LCD)
Projection Lens:
Projection Lens:
Type: No optical zoom / Focus (Manual)
F-Number: 1.70
Focal Length: 11.76 mm
Zoom Ratio: 1.0 – 1.35 (Digital Zoom)
Throw Ratio: 0.80 – 1.07 (Wide – Tele)
Network:Wired LAN RJ45 x 1 (100Mbps)
Built-in Wireless: Yes
Optional Wireless: ELPAP11
Analog RGB Input:D-Sub 15Pin: 2
Digital Input:HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)
Audio Input:Stereo Mini Jack: 2
Audio Output:Stereo Mini Jack: 1
Control I/O:RS-232C: D-Sub 9pin x 1
USB Input:USB Type A: 2 (Port1 for PC Free, Firmware Update, Copy OSD Settings;
Port2 for 5V/2A power supply only, no USB function)
USB Type B: 1 (For Mouse, Keyboard, Control, Firmware Update)
Analog Video Output:D-Sub 15Pin: 1
Digital Video Output:HDMI: 1 (HDCP 2.3)
Screen Size (Projected Distance): Zoom : Wide: 50” – 200” [0.85 – 3.49 m]

Zoom : Tele: N/A

Operating Altitude: Operating Altitude:

Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)


Power Supply Voltage:

100 – 240 V AC ±10%, 50/60 Hz

Dimensions Dimension Excluding Feet (W x H x D):

  • 304 x 440 x 122 mm
