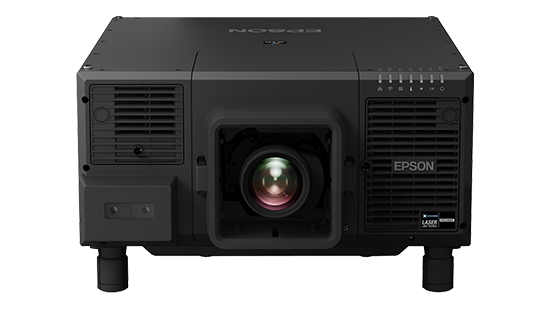

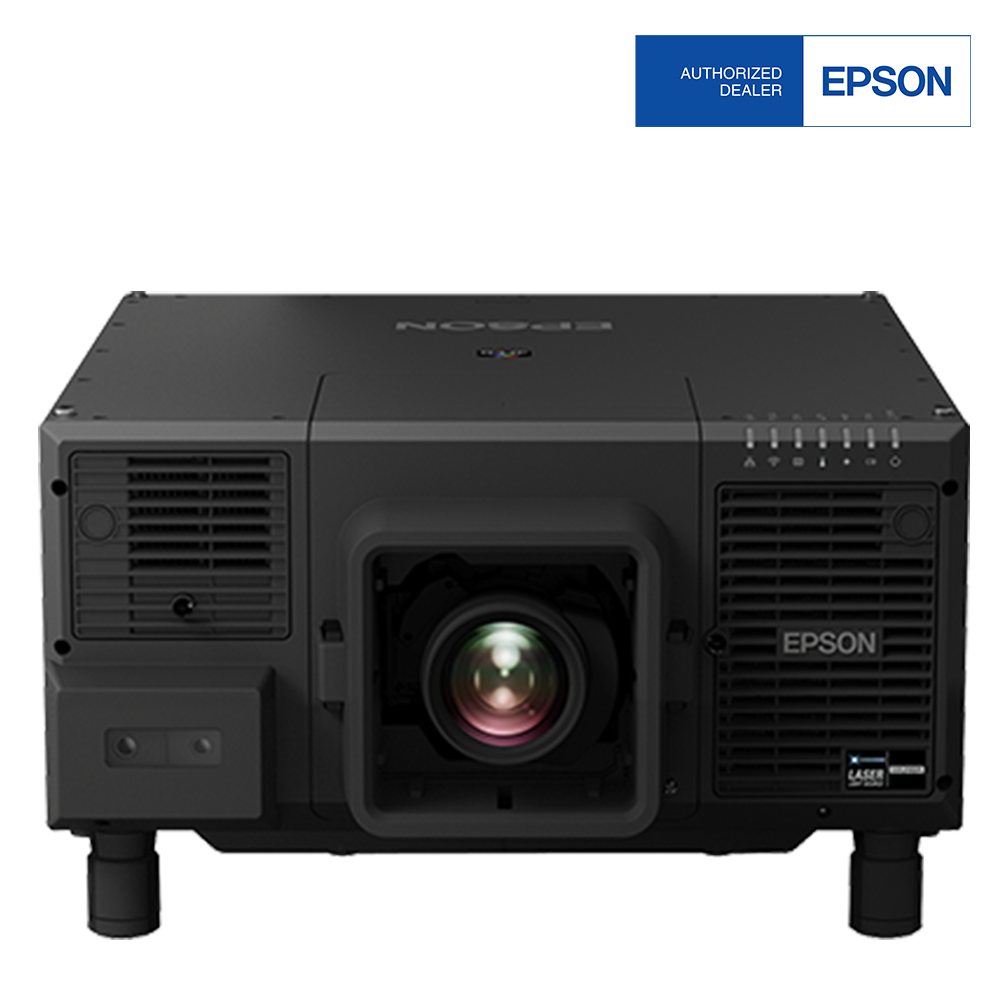

Epson EB-L20000UNL Laser WUXGA 3LCD Projector without Lens


Make a powerful impact on a bigger stage with the EB-L20000UNL high brightness laser projectors.

With high reliability and a robust design protected by a triple layered dust-proof structure, enjoy ease of mobility and installation flexibility. It is immensely flexible with 360° rotation, adjustable tilt and large variety of lenses to suit any venue or application.



20,000-Hour Maintenance Free
A newly designed laser light source and advanced electrostatic filter deliver 20,000 hours*3 of maintenance-free for the laser light source only.

Inorganic LCD panels and an inorganic phosphor wheel combine with a dust-proof design for 20,000 hours of warranty*4. Additionally, the laser light source is highly reliable, eliminating the worry of the light burning out during important presentations.

Total Liquid Cooling System
A newly developed liquid cooling system maintains optimal temperatures of key optical elements. The inorganic LCD panels, inorganic phosphor wheel and laser light source are kept at optimal temperature no matter how the projector is installed. This efficient cooling system contributes to minimising body size and noise.

High Contrast Ratio
Add brilliance to your presentations. Boasting stunning brightness of up to 20,000 lumens and a high contrast ratio of more than 2,500,000:1, these projectors enable you to project beautiful, well defined images wherever you are, regardless of ambient light.

Auto Geometry Correction with Built-In Camera
The built-in camera detects images that are not projected correctly, allowing the projector to automatically correct a variety of geometry corrections like corner and curved projections.

Multi-Directional Projection
EB-L20000UNL can be rotated 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness.

Wide Range of Connectivity
EB- L20000UNL is compatible with a wide range of external devices, and additional ports now include DVI-D, HDMI and HDBaseT. Ideal for large venues, HDBaseT can transmit Full HD video, audio and Ethernet at low cost through cat 5e/6 cables up to 100 metres.


Projection Technology: RGB liquid crystal shutter projection system
Brightness: White Light Output (Normal/Eco):

  • 20,000 / 14,000 lm

Colour Light Output:

  • 20,000 lm

Light Output (Center):

  • 21,600lm*

Network:Wired LAN: RJ45 x1 (etherCON)
Wireless: 1

Analog Input:Mini D-Sub 15Pin: 1
BNC: 1

Digital Input:HDBaseT: 1 (RJ45)

Expansion Interface Slot:Factory Set – Slot 2: Blank
Quantity: 2
Factory Set – Slot 1: ELPIF01 (HDMI & DVI-D)

Expansion Interface Board:ELPIF03 – DisplayPort In: 2 (DP 20p)
ELPIF01 – HDMI: 1 (HDMI 19p)
ELPIF01 – DVI-D: 1

Analog Output:Mini D-Sub 15Pin: 1

Control I/O:RS-232C: 1
Remote Control Input: 1 (Stereo Mini)

Digital Output:BNC: 1

Others:USB Type A: 1 (for Firmware Update, Copy OSD Settings, DC Out 900mA)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Screen Size (Projected Distance): Zoom : Wide:60” – 1000” [1.99 – 34.43 m]

Zoom : Tele:60” – 1000” [3.26 – 55.63 m]

Projection Lens: Lens Exchange: Yes
Lens Shift – Vertical (Up/Down): ±60 %
Focal Length: 36.0 – 57.3 mm
Throw Ratio: 1.57 – 2.56
Lens Shift – Horizontal (Left/Right): ±18 %
F-Number: 1.8 – 2.3
Type: Power Zoom, Power Focus
Zoom Ratio: 1 – 1.61
Lens Shift – Mode: Powered
Power: Power Supply Voltage:

  • 100 – 240 V AC ±10%, 50/60 Hz
Dimensions Dimension Excluding Feet (W x H x D):

  • 280mm x 720mm x 620 mm
