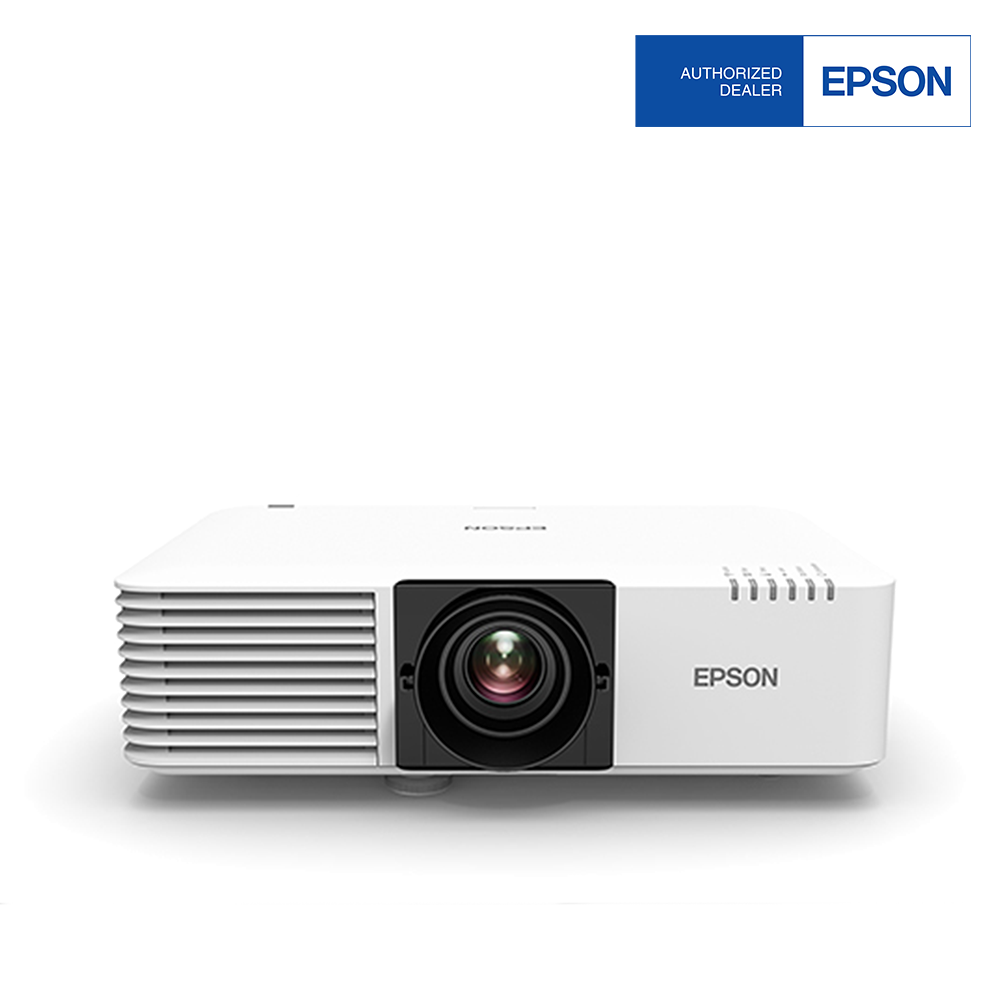

Epson EB-L520U WUXGA 3LCD Laser Projector

Robust, compact WUXGA laser projector with 5,200 Lumens and Optical Zoom


The compact, affordable EB-L520U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 5,200 lumens of white & colour brightness*2. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours*1 and offers virtually maintenance-free operation with no lamps. Plus, it features an optical zoom of up to 1.6x. It also supports split screen function of up to 4 screens enabling better information sharing and also comes with flexible settings for image enhancement to further sharpen image resolution to your preferences. It is also compatible with the Epson Wireless Presentation System** which enables hassle-free connectivity for better productivity



Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.


Split Screen Function

Supports up to 4 split screens. Connect up to 4 devices simultaneously to share screen and accommodate better information sharing.


Supports 16:6 Wide Screen Setting

Wide and large screen display ensuring optimal visibility, regardless of where you are seated.


Compatible with the Epson Wireless Presentation System

Improve productivity and deliver interactive meeting styles at an affordable price



Projection Technology: RGB liquid crystal shutter projection system (3LCD)
Brightness: White Light Output:

  • 4,200 lm / 2,940lm

Colour Light Output:

  • 4,200 lm
Network:Wired LAN RJ45 x 1 (100Mbps)
Built-in Wireless: N/A
Optional Wireless: ELPAP11
Analog RGB Input:D-Sub 15Pin: 2
Digital Input:HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)
Audio Input:Stereo Mini Jack: 2
Audio Output:Stereo Mini Jack: 1
Control I/O:RS-232C: D-Sub 9pin x 1
USB Input:USB Type A: 1 (For PC Free, Firmware Update and Copy OSD Settings)
USB Type B: 1 (For mouse, K/B, control, firmware)
Analog Video Output:D-Sub 15Pin: 1
Digital Video Output:N/A
Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 – 31.8 mm
Zoom Ratio: 1.0 – 1.60
Throw Ratio: 1.35 – 2.20 (Wide – Tele)
LCD: Size: 0.67″ (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10

Power Supply Voltage:

100 – 240 V AC ±10%, 50/60 Hz

Dimensions Dimension Excluding Feet (W x H x D):

  • 304 x 440 x 122 mm
