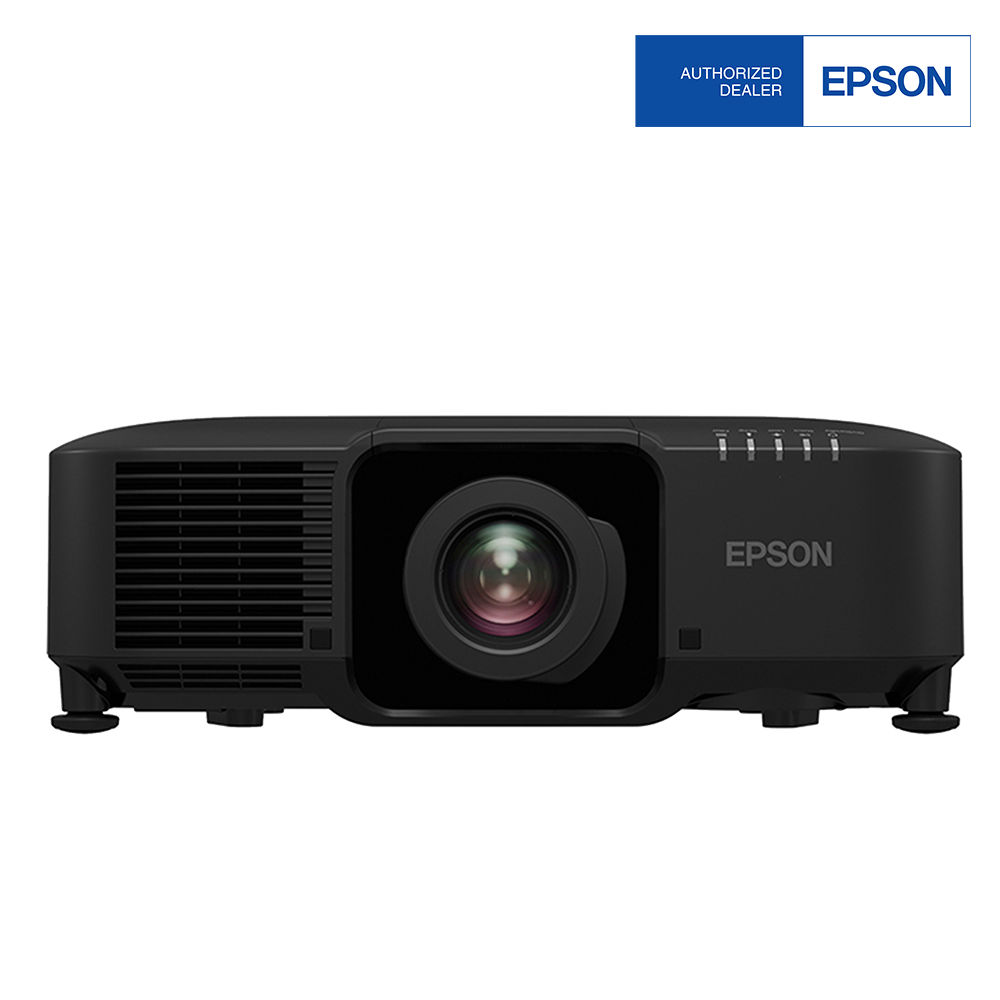

EB-PU2010B WUXGA 3LCD Laser Projector with 4K Enhancement

Premium, compact large venue laser projector with 4K Enhancement.

A sleek powerful projector boosting 10,000 lumens of equal colour and white brightness and is designed to be virtually maintenance-free.

This compact and versatile high brightness projector with optional interchangable lens including a zero-offset ultra short throw lens allows offers flexibility in a wide variety of environments. With its beyond Full HD WUXGA resolution and 4K Enhancement Technology (1920 x 1200 x 2), expect stunning, crystal-clear, true to life images with exceptional image detail and clarity. With the Built-in NFC function, diagnostics and installations is made easier using the Epson Projector Config Tool, reducing the time spent even for the setting up of multiple projectors. The optional external camera module allows access to powerful automated tools including auto color calibration, screen matching of multiple projectors6, Geometry Correction Assist for Tiling for Edge Blending7, and the Geometry Correction Assist for Stacking function.

Category:

Description

Revolutionary 4 in 1 Laser Package
Equipped with this new laser package, EB-PU2010B delivers 10,000 lumens of equal white and colour brightness in a compact, lightweight chassis. This allows for easier and more discreet installations as well as increased transportability.

Borderless Multi Projection
With a wide variety of functions available for multi-projector installations, you can adjust the brightness, colour and position of overlapping areas for seamless, beautiful displays with the PU-series of projectors.

Optional ELPAF63 External Air Filter
Coupled with the external air filter, the PU-series will reduce the maintenance intervals even in high dust environments such as shopping malls and exhibitions.

Benefits of Geometry Correction Assist for Stacking with Optional ELPEC01 camera
The ELPEC01’s flexible mounting positions allow for quick adjustments to the camera, as well as usage with ultra short throw lens, thanks to its small size. When used together with the Epson Professional Tool software, both setup and usage for multiple projectors will be a fuss-free process.







Projection Technology: RGB liquid crystal shutter projection system (3LCD)
Brightness: White Light Output (Normal/Eco):

  • 10,000lm / 7,000lm

Colour Light Output:

  • 10,000 lm

Light Output (Center):

  • 10,300 lm
Connectivity

Network:Wired LAN: RJ45 x 1 (100Mbps)
Optional Wireless: ELPAP11

Analog Input:D-Sub 15pin: 1

Digital Input:HDMI: 1 (HDCP 2.3)
DVI-D: 1 (HDCP 1.4)
HDBaseT: 1 (HDCP 2.3)
SDI (SD/HD/3G-SDI): BNC x 1

Audio Output:Stereo Mini Jack: 1

Control I/O:RS-232C: D-Sub 9pin x 1
Remote: Stereo Mini x 1

Digital Output:SDI (SD/HD/3G-SDI): BNC x 1

Others:USB Type A: 2 (Port1 for 5V/2A Power Supply, Grackle, SMF1, Firmware Update, Copy OSD Settings, Content Playback ; Port2 for 5V/900mA Power Supply, Wireless LAN, Firmware Update, Copy OSD Settings, Content Playback)
USB Type B: 1 (For Firmware Update, Copy OSD Settings)
Projection Lens: Type:Power Zoom, Power Focus

Focal Length:36 – 57.4 mm

Zoom Ratio:1 – 1.6

F-number:1.8 – 2.3

Lens Shift:Vertical: ±60% (Powered)
Horizontal: ±18% (Powered)

Throw Ratio Range:1.57 – 2.56 (Wide – Tele)
Contrast Ratio: Over 2,500,000:1
Power: Power Supply Voltage:

  • 100 – 240 V AC ±10%, 50/60 Hz
Dimensions Dimension Excluding Feet (W x H x D):

  • 545 x 164 x 436 mm
