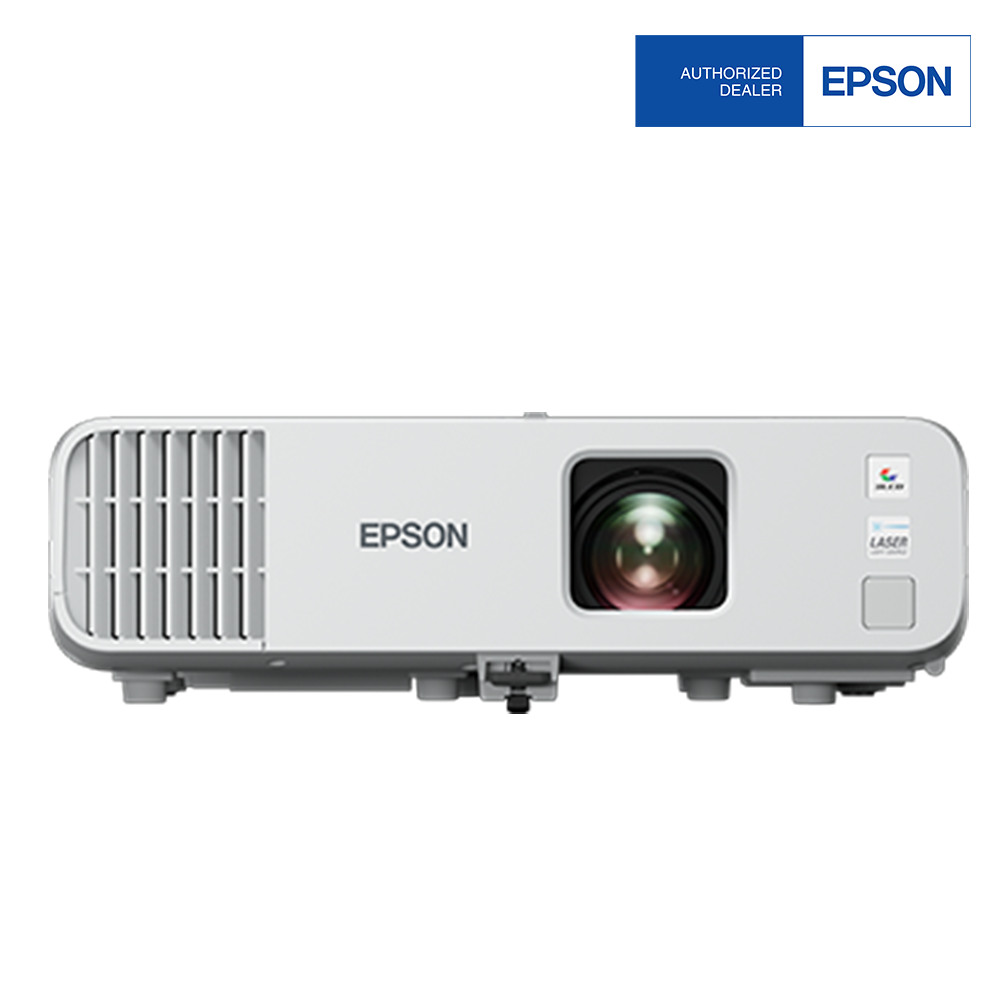

Epson EB-L200X 3LCD XGA Standard-Throw Laser Projector with Built-in Wireless

Bring bright, easy-to-read images to the classroom with this versatile laser projector.


Project bright, easy-to-read images from nearly anywhere in classrooms and offices with the versatile EB-L200X long-throw laser projector. A convenient, affordable projector for modern classrooms, the EB-L200X offers 4,200 lumens of brightness*1 and is virtually maintenance-free with no lamps to replace for light source up to 20,000 hours*7. Designed with collaboration in mind, this flexible projector delivers colorful images with native XGA (4:3) resolution, and provides a variety of engaging features, including a powerful 16 W speaker and built-in wireless and Miracast® support for convenient content sharing from laptops and smart devices.



Bright and Compact
Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the L200 series is now more compact yet producing bright and sharp images. Thanks to the new heatsink design, the L200 series has great heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images

Super Resolution with Detail Enhancement
Improve perceived image resolution with the detail enhancement function. Now, you can enjoy great image quality.

Cost Effective
Epson’s unique laser technology sees the L200 series having 20,000 hours*7 of maintenance-free laser light source. Users can share their content with confidence, thanks to the innovative fixed phosphor unit, giving your devices durability and long-lasting life.

Split Screen Function
Power up efficiency in conferences by connecting up to four displays in one screen and accommodate great information sharing.



Projection Technology: RGB liquid crystal shutter projection system (3LCD)
Brightness: White Light Output:

  • 4,200 lm / 2,940lm

Colour Light Output:

  • 4,200 lm

Built-in x 1
Optional x 1 (using optional ELPAP11)
Wired Lan:
RJ45 x 1 (100Mbps)

Analog Input:D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)

Digital Input:HDMI: 2 (HDCP 2.2)

Analog Output Terminal:D-Sub 15Pin: 1 (Black)

Audio Input:RCA: 1 (White, Red)
Stereo Mini Jack: 2

Audio Output:Stereo Mini Jack: 1

Control I/O:RS-232C: D-Sub 9pin x 1

Others:USB Type A: 1 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings, Document Camera)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Mic I/O: Stereo Mini x 1

Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.99
Focal Length: 18.2 – 29.2mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)
Throw Ratio: 1.38 – 2.24
LCD: Size: 0.63” (C2Fine)
Resolution: XGA (1024 x 768)

Power Consumption (220-240V):

Lamp On (Normal/Eco):254W / 193W

Standby:2.0W / 0.5W (Network On / Off)

Dimensions Dimension Excluding Feet (W x H x D):

  • 299 x 325 x 90 mm
