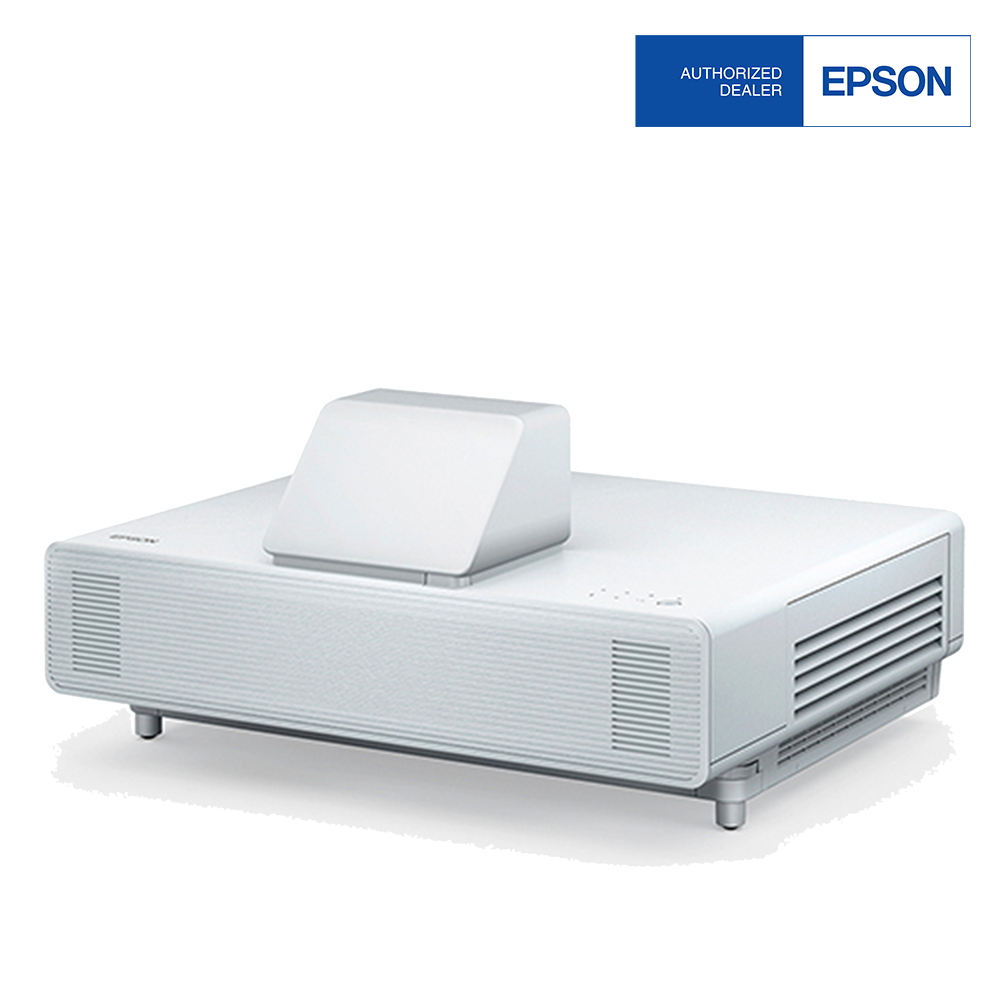

Epson EB-800F Ultra-short Throw Full HD Laser Projector

Create Your Own Customer Experience.

Wow your customers and strengthen marketing messages with Epson EB-800F Full HD1 ultra-short throw laser projector! Create stunning video content easily and instantly project your information wirelessly to your audience. EB-800 series projectors’ laser light source allows it to be placed in any orientation, even in tight spaces, and are the ideal companion for your digital signage needs.




Remarkable Image Quality
With an optimum brightness of 5,000 lumens and dynamic contrast of over 2,5000,000:1, be assured that your images will be vivid and attention-grabbing even under a variety of ambient lightings. The ultra-short-throw laser projector is able to project beautiful and sharp images even in the tightest retail spaces up to a maximum of 130-inch.


Multi-directional Projection
Thanks to its laser light source, EB-800 series projectors can rotate 360° in any direction — horizontally, vertically and rotationally — without any loss in image brightness and quality. An ideal companion to businesses that require vivid projections on a variety of surfaces such as floors and ceilings.
Flexible Projection Image
The black background in images will not be projected on surface, allowing non-rectangular images. This allows flexibility and great creativity in creating content. Thus, this gives users the ability to form sleek and eye-catching designs, without being confined to a rectangular image.
Do-It-Yourself Content
Create video and image content with Epson Creative Projection App*. With over 40 high quality templates to choose from, customise stunning and creative content effortlessly and project them wirelessly to capture your audience’s attention. What’s more, the app is totally free and easily downloadable from Apple App Store!

Projection Technology: RGB liquid crystal shutter projection system
Brightness: 4001lm
Wireless LAN: 1 x USB Type A (In common with Memory I/O)
Wired LAN: RJ45 x 1
Analog Input:
Composite: RCA x 1 (Yellow)
D-Sub 15Pin: 2
Digital Input:
HDMI: 3 (HDCP2.3)
HDBaseT: 1 (HDCP2.3)
Audio Input:
Stereo Mini Jack: 3
Audio Output:Stereo Mini Jack: 1
Control I/O:RS-232C: D-sub 9 pin x 1
USB Type B: 1 (for USB Display, mouse, K/B, Control, Firmware Update, Interactive, Copy OSD Settings)
USB Type A: 2 (for Saving and Reading* data via USB Memory, USB Document Camera)
Screen Size (Projected Distance) : Standard Size:

80” [48.7 cm]

Zoom : Wide:65” – 130” [39.2 – 80.3 cm] @ 16:9
61” – 120” [39.5 – 79.6 cm] @ 16:6

Zoom : Tele:48” – 96” [39.2 – 80.3 cm] @ 16:9

Contrast Ratio: Over 2,500,000:1

Power Supply Voltage:

100 – 240 V AC +/- 10%, 50/60 Hz

Dimensions Dimension Excluding Feet (W x H x D):

  • 458 mm x 209.5 mm x 375 mm
